Silver Automatic indoor double action floor spring sealed Double Door opening device
Description:
The Auto Swing door operators have been engineered to open doors for people with disabilities and the elderly. The one way clutch allows the door to be opened manually with incredible ease. The Auto Swing incorporates a concealed heavy duty adjustable door stop, therefore eliminating the need for external stops. The Auto Swing is equipped with an adjustable heavy-duty spring and powerful Brushless DC motor. Because of this feature, the Auto Swing can be used to operate larger, heavier doors in windy conditions.
Specifications:
Motor Specs:
| Type | Brushless |
| Voltage | 24VDC |
| Power | 75W |
| No-load speed | 9rpm |
| On-Load speed | 7.5rpm |
| Noise level | ≤40dB |
| Gear Ratio | 1:248 |
| Protection class | IP55 |
| Weight | 8.5kg |
| Lifetime | 3million cycles,10years |
| Application | Automatic Floor Spring |
Automatic Floor Spring dates:
| Max door weight | 250kg | | |
| Max door width | 1400mm | | |
| Max torque | 75Nm | | |
| Install way | Ground buried | |
| Electronic lock output | DC 24V always open /always close contact | |
| Open and close time | 2-6 sec adjustable | | |
| Close holding time | 0-30 sec adjustable | |
| Open range | 45° to 90°can be adjusted | |
| Power | 220V±10% 50-60HZ | |
| Rated current | less than 1A | |
| Max power consumption | 35W | | |
| Pending power consumption | less than 2W | |
| Control device | Specialized super heterodyne receivers,
effective distance more that 50mm, learn model code. | |
| |
| Work temperature | (-40 to +80) | |
| Line index | continuum running 3 million with no obstacles | |
| Protection grade | IP55 | |
| Machine size | L342mm*W200mm*H82mm | |
| Controller size | L225mm*W195mm*70mm | |
Applications:
Floor Spring Door Operator.

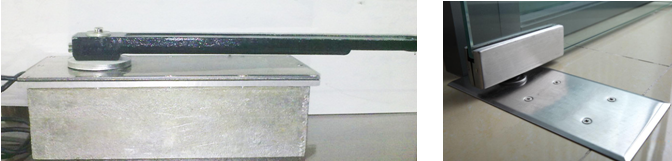

Automatic Floor Spring application Examples Pictures:

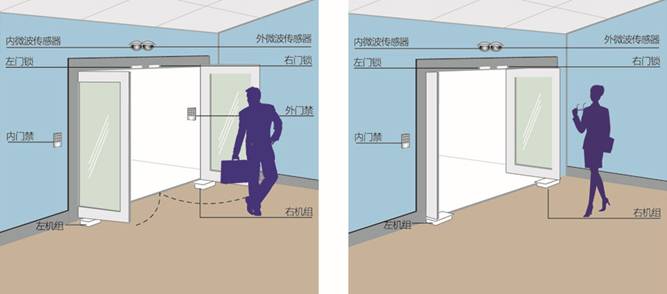

Automatic Floor Spring Application:
Competitive Advantage:
1. Safe
The Auto Swing door operators are designed with the safety of the user in mind and complies with the latest CE standards for low energy door operation.
2. Quiet Operation
The Auto Swing door operators are noise free in both automatic and manual mode for a pleasant, consumer friendly environment.
3. Easy Installation
The Auto Swing door operator requires only simple procedures for fast, trouble free installation. The AutoSwing is also easily retrofitted to existing doors or new construction without major renovation.
4. Reliable
The Auto Swing is designed specifically for International weather conditions. The combination of superior construction and technology make the Auto Swing door operators the most reliable on the market.
